DIO Product Catalog Sinus Surgery Sinus Kit – Drill Solution
DIO official specifications
Sinus Surgery: New sinus solution: crestal sinus dedicated kits.
- Crestal sinus dedicated kit
Source: DIO Implant official product information. Confirm the platform and size against your fixture before ordering.
DIO CRESTAL SINUS SURGERY

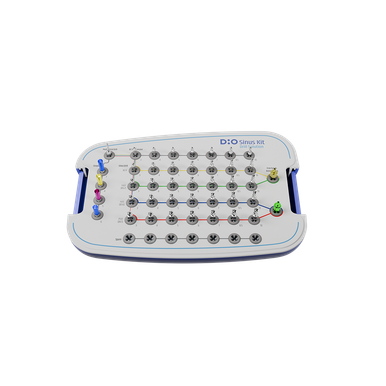

Sinus Kit — Drill Solution
A crestal-sinus drill workflow with height-specific stoppers and instruments for controlled site preparation and membrane-elevation procedures.
Stop drills and stoppers support selection based on residual bone height.
Includes saline and water-membrane instruments for cases requiring additional elevation.
Brand: DIO Implant | SKU: SKDS 01 | Drill Solution.
Included components
- Multi Initial ST Drill
- Stopper
- Sinus Expansion Drill
- Sinus Lift Drill
- Water Membrane Lifter
- Water Membrane Lifter Dummy
- Sinus Membrane Detach Tool
- Depth Gauge
- Saline Tube
- Steel Bowl
Clinical use requires professional training and judgment. Included components should be verified against the current SKU configuration before purchase.
DIO · Sinus surgery
New Sinus Kit – Drill Solution
Crestal sinus lift with stop drills matched one-to-one to bone height. The round tip and built-in stopper keep drilling safe near the membrane, and sinus lift can be completed by drilling and implantation alone.
Crestal sinus lift
The crestal approach lifts the sinus membrane vertically from the alveolar crest: minimally invasive, less bleeding and pain, faster recovery, and the implant can be placed at the same time. It is generally indicated with about 4 mm or more of residual bone; the lateral window approach is used for less.

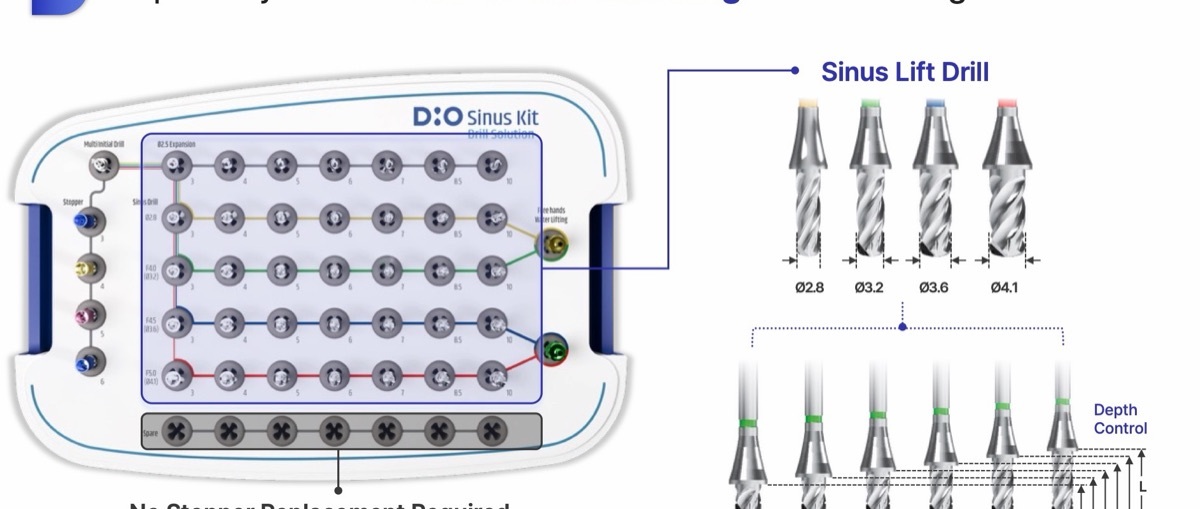

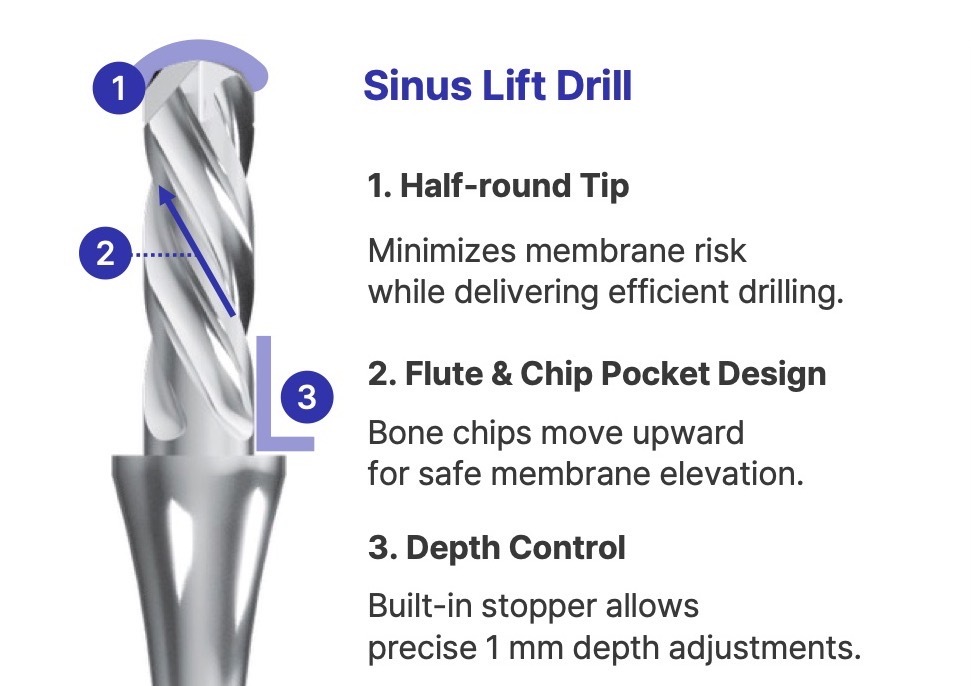

Sinus Lift Drill
- Sizes Ø2.8, Ø3.2, Ø3.6, Ø4.1 with built-in stoppers: no stopper replacement needed
- Half-round tip minimizes membrane risk
- Flute and chip pocket move bone chips upward to help lift the membrane

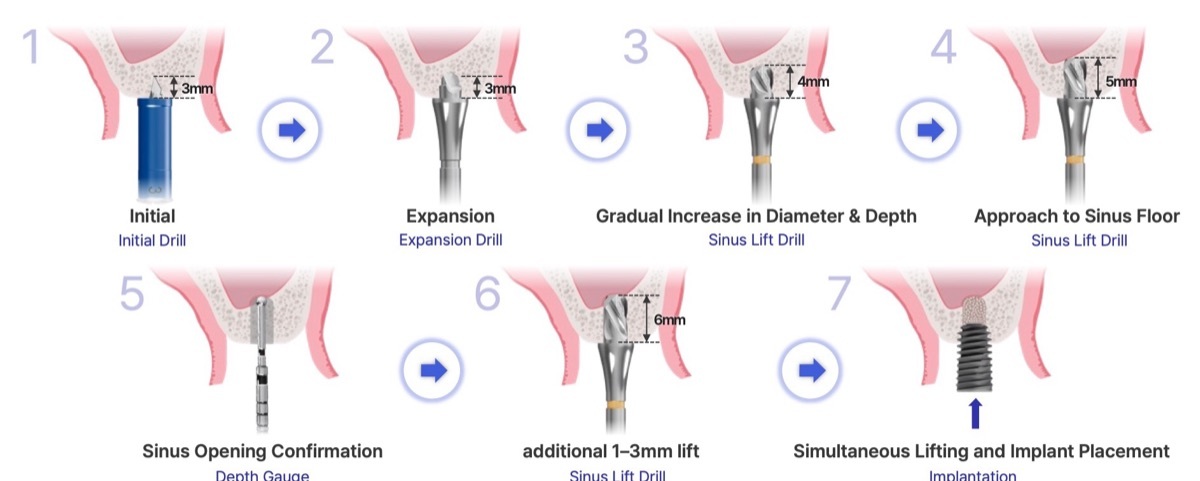

Drill protocol
For sinus heights under 3 mm, lifting can be done with drills alone: initial drill, expansion drill, gradual increase in diameter and depth, approach to the sinus floor, confirm the opening with the depth gauge, lift a further 1–3 mm, then place the implant.
Free-hand hydraulic elevation
Saline-based elevation without extra fixation tools. Air bubbles and saline level in the tube make membrane perforation easy to check. The Water Membrane Lifter (Ø2.8/3.2 yellow, Ø3.6/4.1 green) is chosen by drill diameter; the dummy seals adjacent sites when placing two or more implants.
Membrane detach instrument (both kits)
Designed to gently separate the sinus membrane, with a curved tip for precise detachment up to 2.7 mm on one side.
Related on WhiteCap
Source: DIO Implant New Sinus Kit education material (2025). Follow the instructions for use; clinical results vary with each case.
Compare DIO surgical kits
Which kit fits your case: placement, guided surgery, implant rescue or crestal sinus lift. See all DIO surgical kits
| Kit | SKU | Best for | Platform / sizes | Guided | Sinus | Rescue |
|---|---|---|---|---|---|---|
| DIO UFII Master Kit | UF(M) 06 | Conventional implant placement | UFII standard diameters | No | No | No |
| DIO UFII Narrow Kit | UF(M) 08 | Narrow fixtures and ridges | UFII Narrow (Ø3.0–3.3) | No | No | No |
| DIO UF Wide Kit | UF 09 | Wide-diameter fixtures | UFII Wide | No | No | No |
| DIONAVI Master Kit | UF(M) 05 | Guided placement, standard cases | UF(II) Narrow and Regular | Yes | No | No |
| DIONAVI Narrow Kit | UF 14 | Guided narrow cases | Ø3.0–3.3 fixtures | Yes | No | No |
| DIONAVI Wide Kit | UF 11 | Guided wide cases | Ø5.5–6.4 fixtures | Yes | No | No |
| DIONAVI Flapless Crestal Sinus Kit | SMK 02 | Guided crestal sinus lift | Ø3.8–5.0 fixtures | Yes | Yes | No |
| Sinus Drill Solution (this kit) | SKDS 01 | Free-hand crestal sinus lift (drills) | Stop drills Ø2.8–4.1 | No | Yes | No |
| Sinus Osteotome Solution | SKOS 01 | Free-hand crestal sinus lift (osteotomes) | Wave ST osteotomes Ø2.7–4.0 | No | Yes | No |
| New Dr. SOS+ Kit | DRS 05 | Broken screw and failed fixture removal | Universal driver engages any remaining hole | No | No | Yes |
