DIO Product Catalog DIONAVI Guided Surgery DIO NAVI Flapless Crestal Sinus Kit
DIO official specifications
Guided Surgery (DIO NAVI): Guided surgery kits for UFII, UFIII and Onebody systems.
- Crestal approach technique
- Low-speed drilling (10 rpm or less) with stopper installation
- For UFII / UFIII Regular Ø3.8–Ø5.0 fixtures
Source: DIO Implant official product information. Confirm the platform and size against your fixture before ordering.

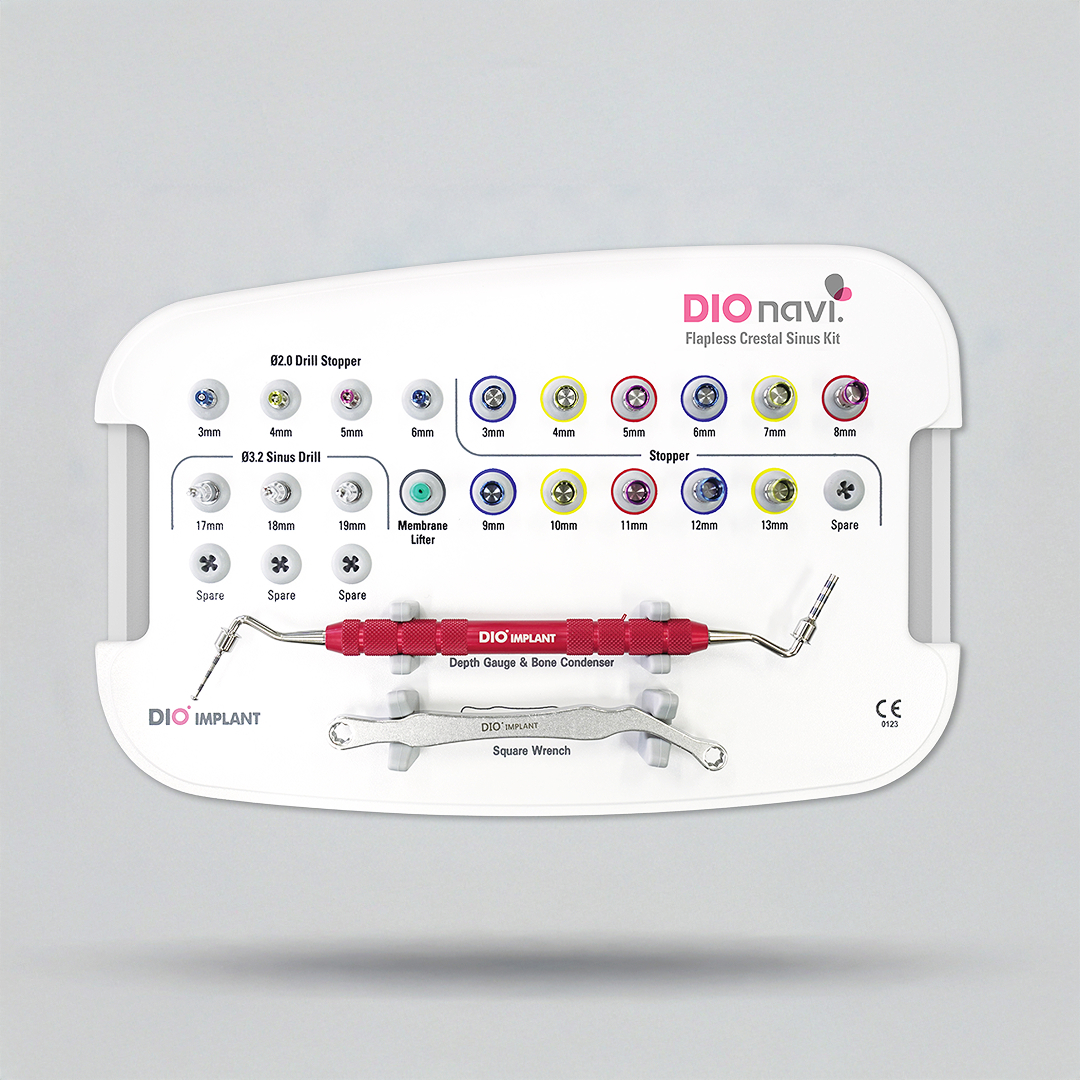

The DIOnavi. Flapless Crestal Sinus Kit, (SMK) contains several tools.
Restal Approach Technic
Sinus Technic is based on low-speed drilling (10rpm) and a stopper that perforates the inferior cortical wall and lifts the membrane safely and quickly.
Problems like fracture of screw from excessive torque, wearing of connections, and jamming of foreign matters during prosthetic part of implant installation are resolved safely and quickly.
WhiteCap DIO product guide
DIOnavi. Flapless Crestal Sinus Kit, (SMK)
A DIO product for guided flapless crestal sinus workflow. This page helps identify the correct kit or component without changing the manufacturer-defined clinical protocol.
What to confirm before ordering
- Exact item: Confirm the SMK workflow, drill sequence, stoppers and included instruments against the current clinical protocol.
- Compatibility: Match the DIO implant family, platform, connection, guide/sleeve system and procedure. Similar-looking components are not automatically interchangeable.
- Package contents: Use the listing image and written component list together. Contact WhiteCap before purchase if a drill, driver, stopper, holder or accessory is not explicitly listed.
- Clinical protocol: Follow current DIO labeling, IFU, drilling sequence, sterilization and reprocessing instructions, and clinician judgment.
DIO describes its surgical-kit range as precision-engineered solutions for guided surgery, freehand implant placement, sinus elevation and implant maintenance. DIONAVI combines digital planning, surgical guides and a structured placement workflow. Product-specific compatibility and included contents control the final purchase decision.
Common ordering questions
Is this kit interchangeable with another DIO kit?
No. Select by the named system and procedure, then verify the included components.
Does the image guarantee every pictured component is included?
No. The written kit contents and selected option govern the order. Ask WhiteCap to confirm any item not explicitly listed.
Where can I verify the manufacturer workflow?
Review DIO surgical kits from DIO Implant USA and the current IFU.
For professional dental use. Product selection and clinical use remain the responsibility of the licensed clinician.
DIO NAVI · Guided surgery
DIOnavi Flapless Crestal Sinus Kit

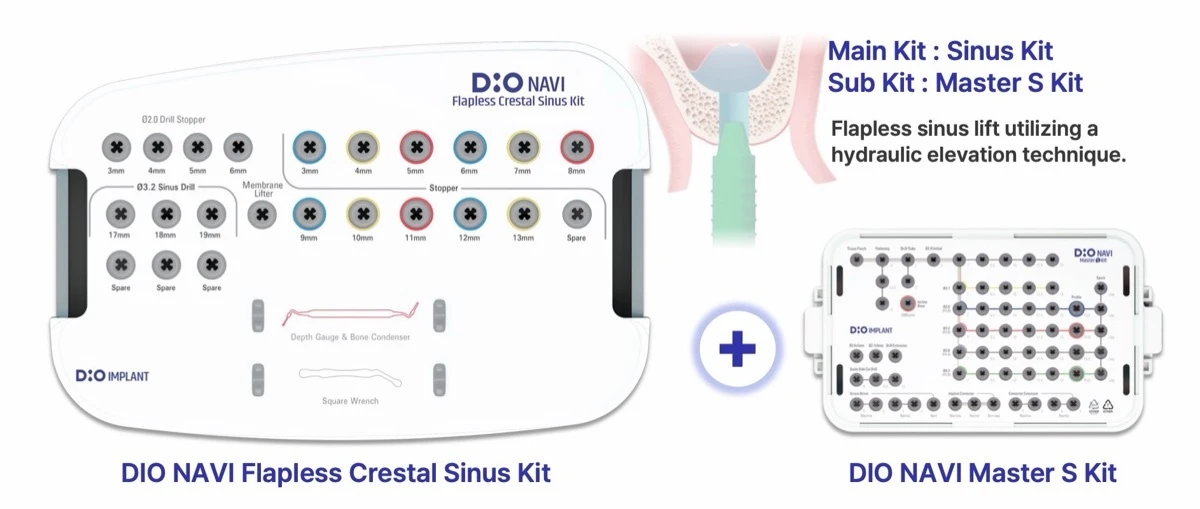

Flapless crestal sinus lift through the DIO NAVI guide with a hydraulic elevation technique, for Ø3.8–5.0 fixtures. Used as the main kit with the Master kit as the sub kit.
Crestal approach using DIO NAVI

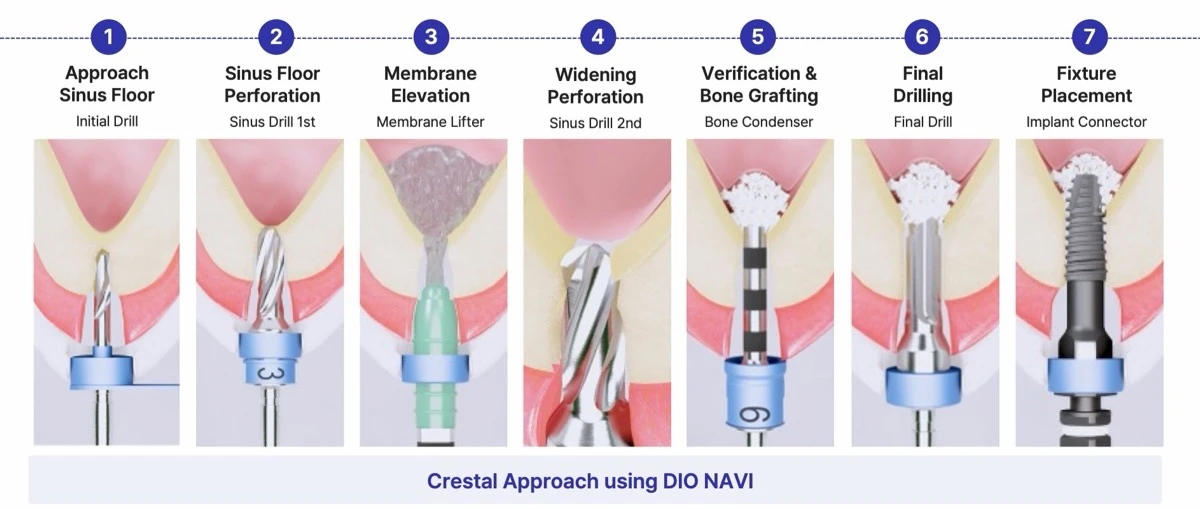

| Step | Tool |
|---|---|
| 1. Approach sinus floor | Initial Drill |
| 2. Sinus floor perforation | Sinus Drill 1st |
| 3. Membrane elevation | Membrane Lifter |
| 4. Widening perforation | Sinus Drill 2nd |
| 5. Verification & bone grafting | Bone Condenser |
| 6. Final drilling | Final Drill |
| 7. Fixture placement | Implant Connector |

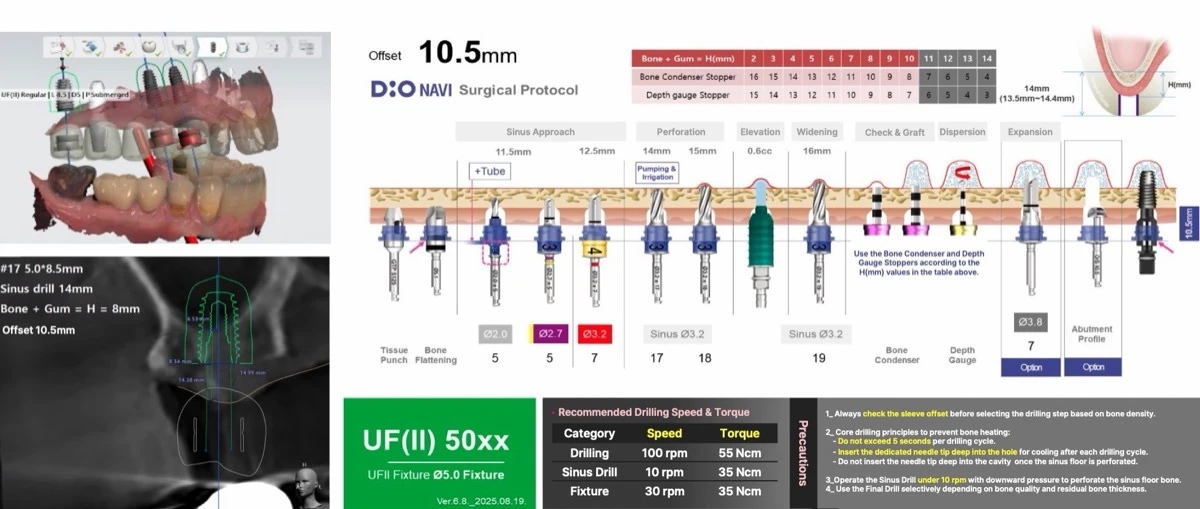

| Recommended | Speed | Torque |
|---|---|---|
| Drilling | 100 rpm | 55 Ncm |
| Sinus Drill | 10 rpm | 35 Ncm |
| Fixture | 30 rpm | 35 Ncm |
Why DIO NAVI
DIO NAVI plans the implant position from CT and intraoral scan data and executes it precisely through a surgical guide. Patients see the plan, and the surgery follows it.
Precise, safe, convenient
How a DIO NAVI case works
Order and upload CT → intraoral scan → planning by the DIO NAVI Center → guide design confirmed by the clinic → prosthetic design → production → packing and delivery. Learn about the DIO NAVI service
DIO NAVI kit line-up
- DIOnavi Master Kit
- DIOnavi Narrow Kit (Ø3.0–3.3 fixtures)
- DIOnavi Wide Kit (Ø5.5–6.4 fixtures)
- DIOnavi Flapless Crestal Sinus Kit (Ø3.8–5.0 fixtures)
- DIOnavi Special Kit (edentulous or extensive missing teeth)
- DIONavi Protem Kit (Protem Ø2.0–3.0)
Source: DIO Implant DIO NAVI education material (2026) and dioimplant.com. Follow the instructions for use; clinical results vary with each case.
Compare DIO surgical kits
Which kit fits your case: placement, guided surgery, implant rescue or crestal sinus lift. See all DIO surgical kits
| Kit | SKU | Best for | Platform / sizes | Guided | Sinus | Rescue |
|---|---|---|---|---|---|---|
| DIO UFII Master Kit | UF(M) 06 | Conventional implant placement | UFII standard diameters | No | No | No |
| DIO UFII Narrow Kit | UF(M) 08 | Narrow fixtures and ridges | UFII Narrow (Ø3.0–3.3) | No | No | No |
| DIO UF Wide Kit | UF 09 | Wide-diameter fixtures | UFII Wide | No | No | No |
| DIONAVI Master Kit | UF(M) 05 | Guided placement, standard cases | UF(II) Narrow and Regular | Yes | No | No |
| DIONAVI Narrow Kit | UF 14 | Guided narrow cases | Ø3.0–3.3 fixtures | Yes | No | No |
| DIONAVI Wide Kit | UF 11 | Guided wide cases | Ø5.5–6.4 fixtures | Yes | No | No |
| DIONAVI Flapless Crestal Sinus Kit (this kit) | SMK 02 | Guided crestal sinus lift | Ø3.8–5.0 fixtures | Yes | Yes | No |
| Sinus Drill Solution | SKDS 01 | Free-hand crestal sinus lift (drills) | Stop drills Ø2.8–4.1 | No | Yes | No |
| Sinus Osteotome Solution | SKOS 01 | Free-hand crestal sinus lift (osteotomes) | Wave ST osteotomes Ø2.7–4.0 | No | Yes | No |
| New Dr. SOS+ Kit | DRS 05 | Broken screw and failed fixture removal | Universal driver engages any remaining hole | No | No | Yes |
