DIO Product Catalog Sinus Surgery Sinus Kit – Osteotome Solution
DIO official specifications
Sinus Surgery: New sinus solution: crestal sinus dedicated kits.
- Crestal sinus dedicated kit
Source: DIO Implant official product information. Confirm the platform and size against your fixture before ordering.
DIO CRESTAL SINUS SURGERY
Sinus Kit — Osteotome Solution
An integrated drill-and-osteotome instrument set for crestal sinus workflows, depth control and membrane-elevation procedures.
Combines Wave ST osteotomes with drilling and membrane-elevation instruments in one kit.
Stoppers support controlled preparation for the planned residual bone height.
Brand: DIO Implant | SKU: SKOS 01 | Osteotome Solution.
Included components
- Multi Initial ST Drill
- Stopper
- Sinus Expansion ST Drill
- Sinus Lift Drill
- Wave ST Osteotome
- Water Membrane Lifter
- Water Membrane Lifter Dummy
- Depth Gauge
- Sinus Membrane Detach Tool
- Steel Bowl
- Saline Tube
- Mallet
Clinical use requires professional training and judgment. Included components should be verified against the current SKU configuration before purchase.
DIO · Sinus surgery
New Sinus Kit – Osteotome Solution

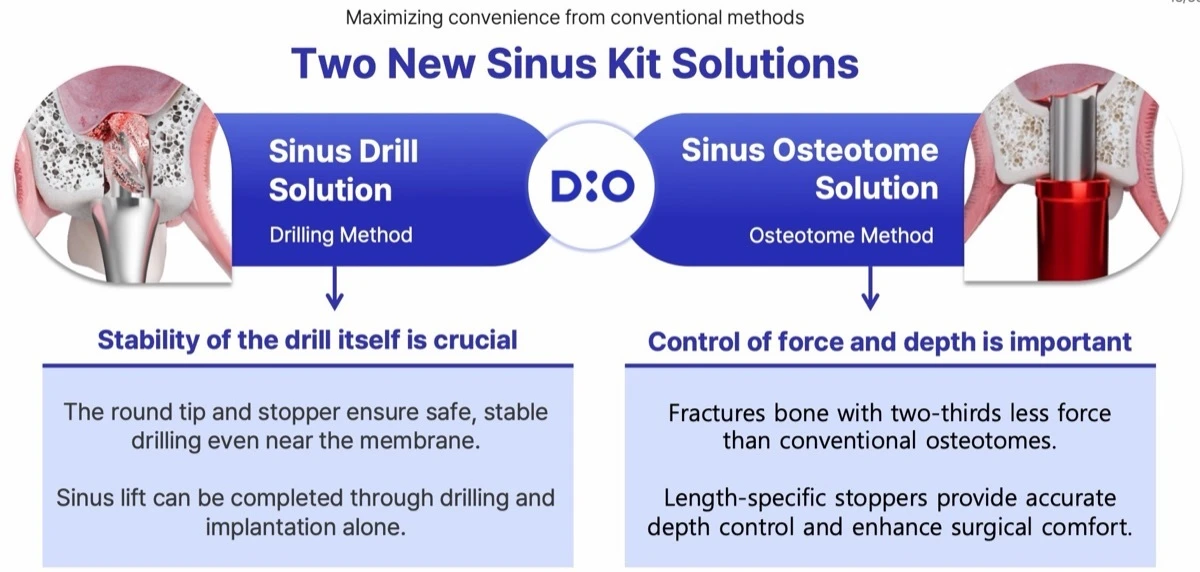

Osteotome and drill kit in one: four Wave ST osteotomes fracture the residual bone with about two-thirds less force than conventional osteotomes, and length-specific stoppers give accurate depth control.

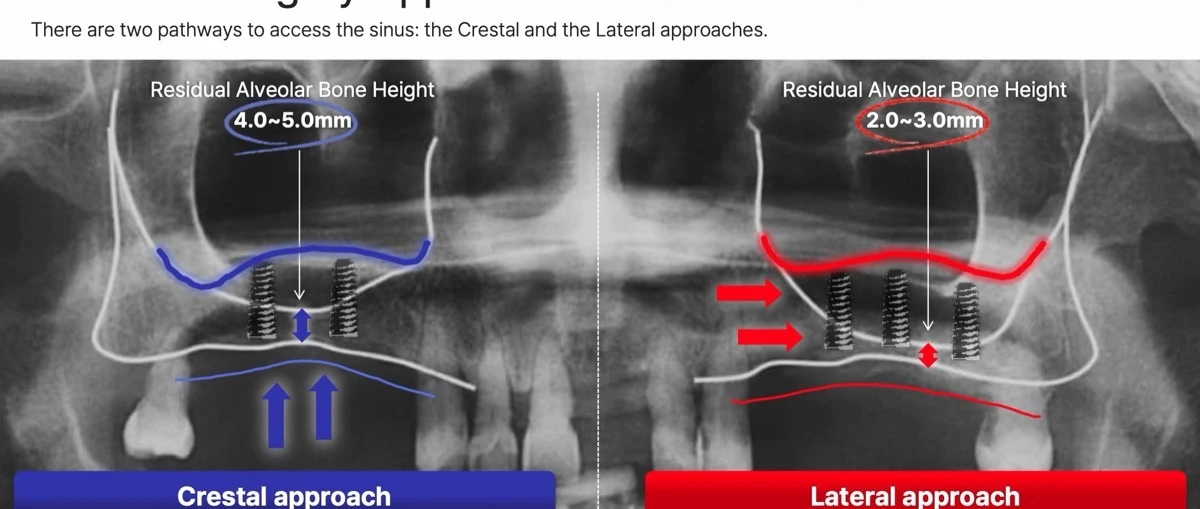

Crestal sinus lift
The crestal approach lifts the sinus membrane vertically from the alveolar crest: minimally invasive, less bleeding and pain, faster recovery, and the implant can be placed at the same time. It is generally indicated with about 4 mm or more of residual bone; the lateral window approach is used for less.

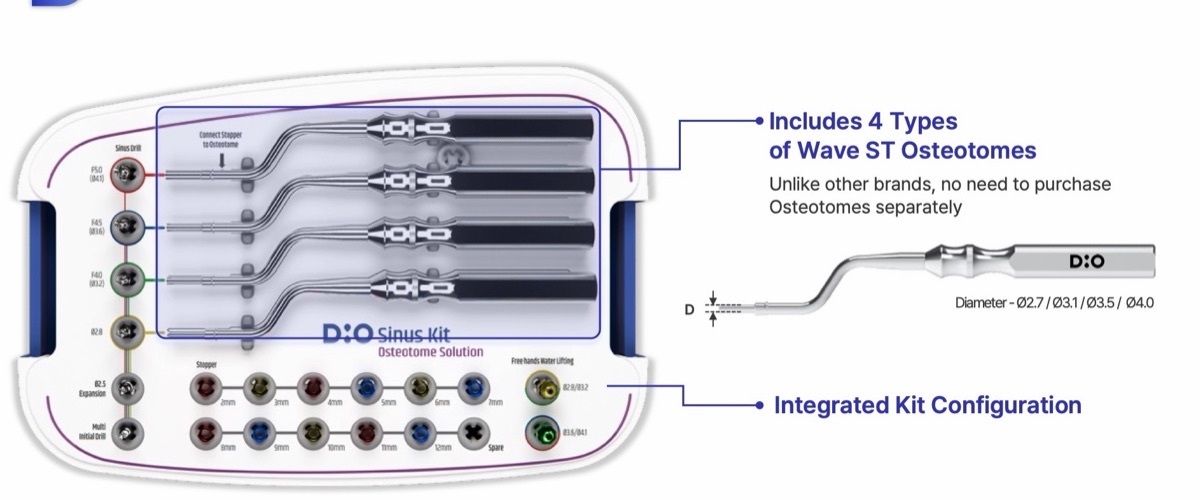

Integrated osteotome & drill kit
Includes 4 Wave ST osteotomes (Ø2.7 / 3.1 / 3.5 / 4.0), so no separate osteotome purchase is needed.

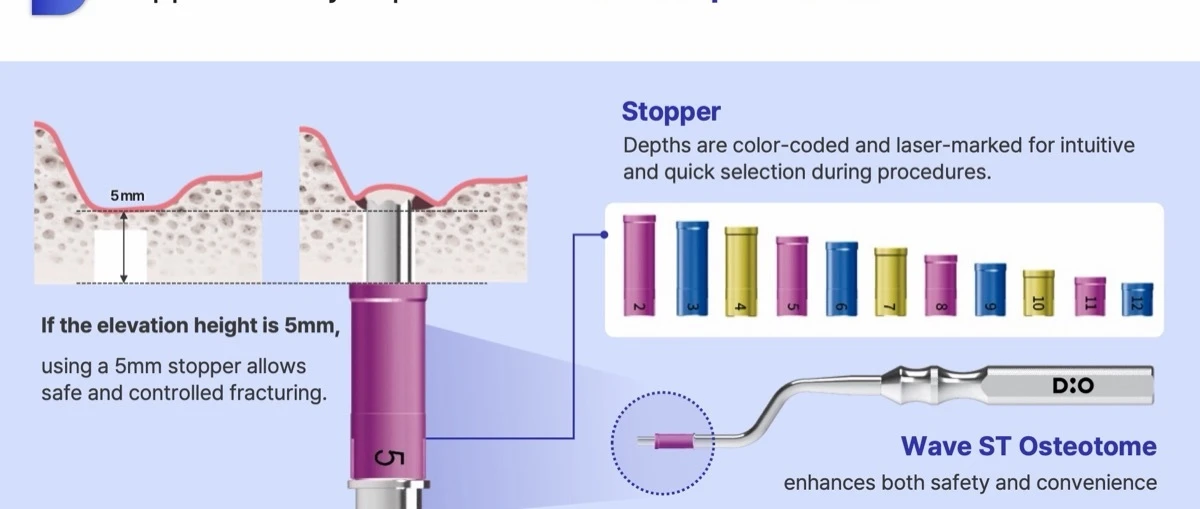

Stoppers for depth control
Stopper depths are color-coded and laser-marked. For a 5 mm elevation, a 5 mm stopper allows a safe, controlled fracture.

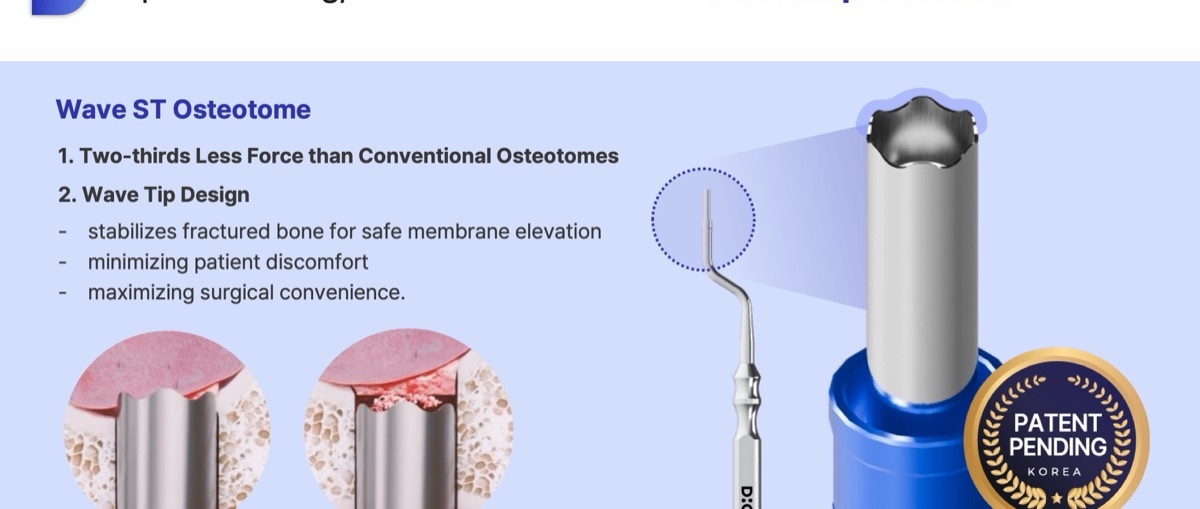

Wave ST osteotome
Needs about two-thirds less force than conventional osteotomes, and the wave tip stabilizes the fractured bone for safe membrane elevation, reducing patient discomfort.

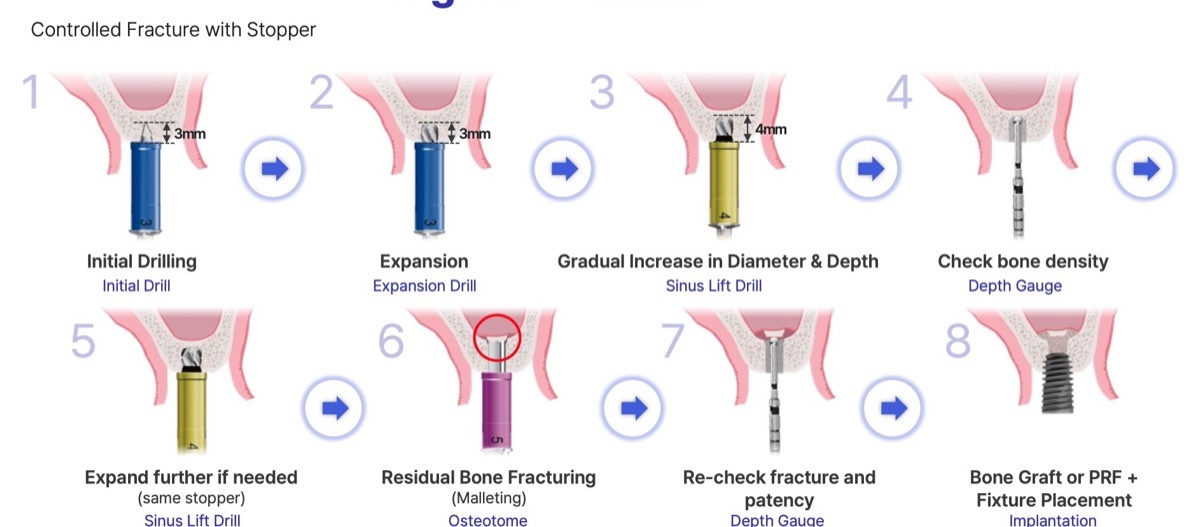

Osteotome protocol
Initial drilling and expansion, residual bone fracture with the osteotome and stopper, re-check fracture and patency with the depth gauge, bone graft or PRF, then implant placement. Hydraulic lift can be added as needed.

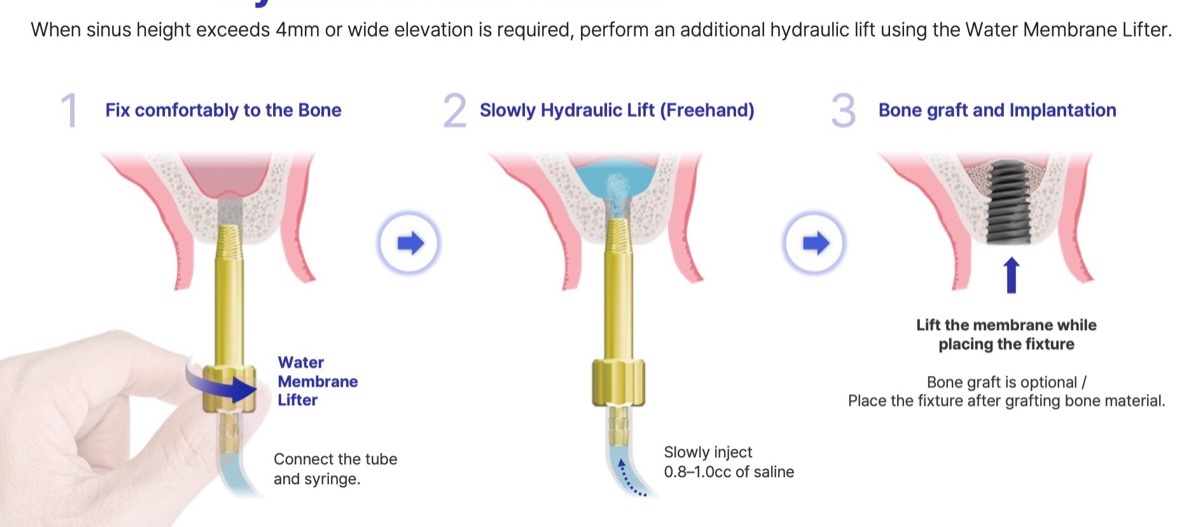

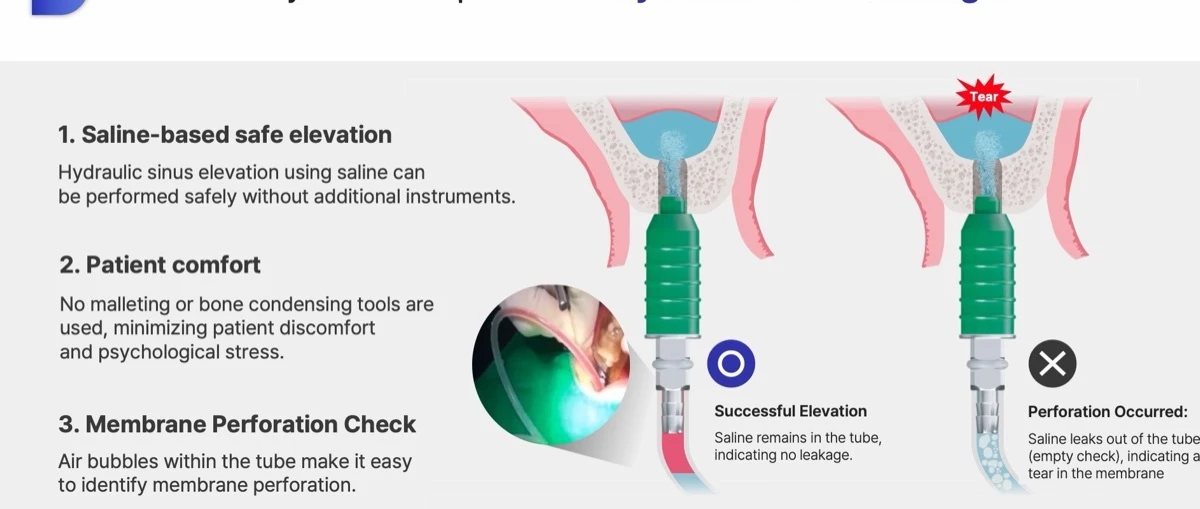

Free-hand hydraulic elevation

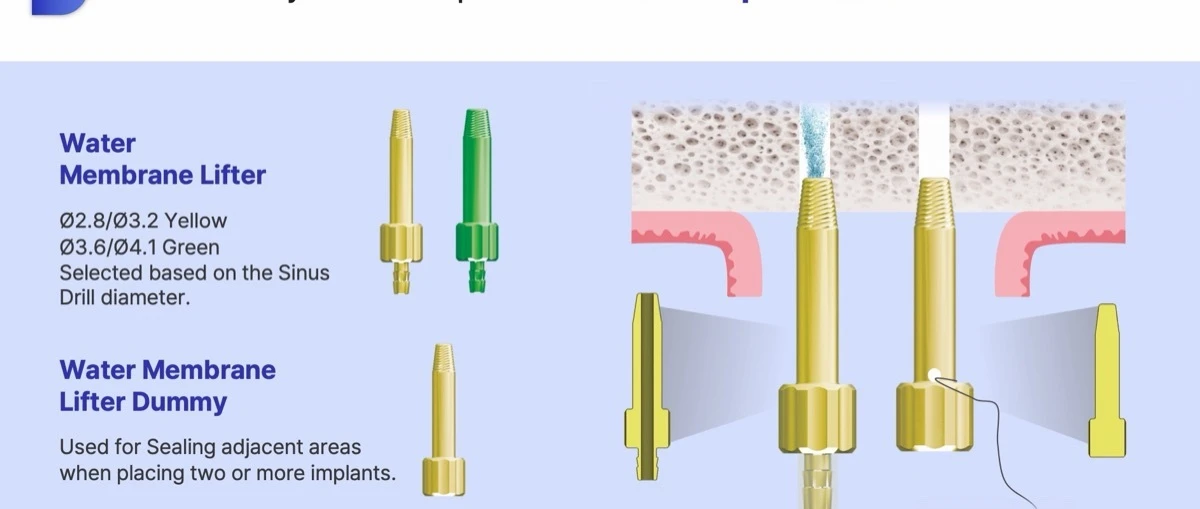

Saline-based elevation without extra fixation tools. Air bubbles and saline level in the tube make membrane perforation easy to check. The Water Membrane Lifter (Ø2.8/3.2 yellow, Ø3.6/4.1 green) is chosen by drill diameter; the dummy seals adjacent sites when placing two or more implants.

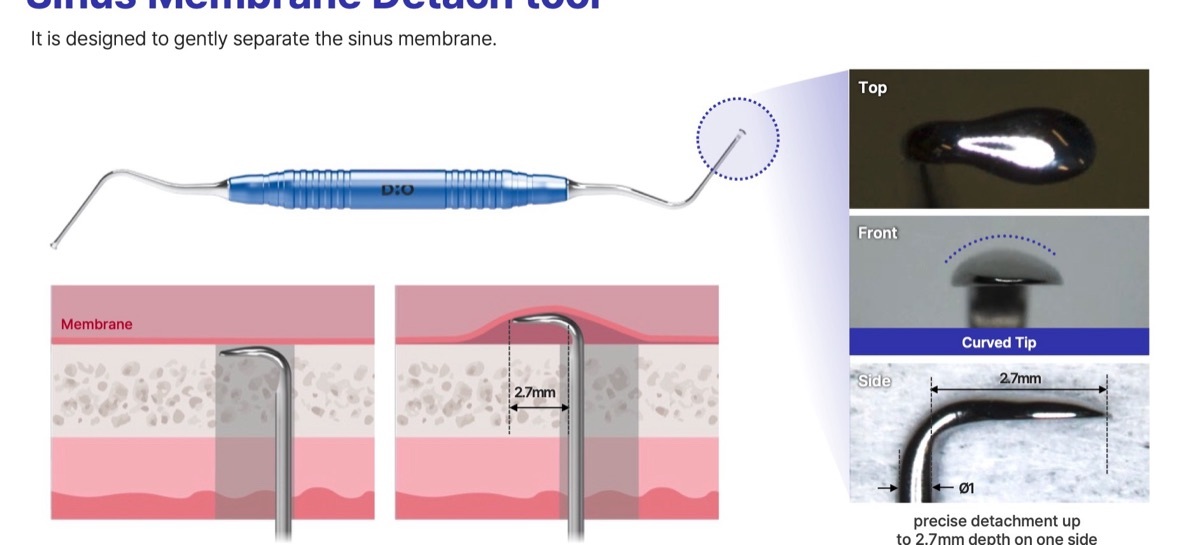

Membrane detach instrument (both kits)
Designed to gently separate the sinus membrane, with a curved tip for precise detachment up to 2.7 mm on one side.
Related on WhiteCap
Source: DIO Implant New Sinus Kit education material (2025). Follow the instructions for use; clinical results vary with each case.
Compare DIO surgical kits
Which kit fits your case: placement, guided surgery, implant rescue or crestal sinus lift. See all DIO surgical kits
| Kit | SKU | Best for | Platform / sizes | Guided | Sinus | Rescue |
|---|---|---|---|---|---|---|
| DIO UFII Master Kit | UF(M) 06 | Conventional implant placement | UFII standard diameters | No | No | No |
| DIO UFII Narrow Kit | UF(M) 08 | Narrow fixtures and ridges | UFII Narrow (Ø3.0–3.3) | No | No | No |
| DIO UF Wide Kit | UF 09 | Wide-diameter fixtures | UFII Wide | No | No | No |
| DIONAVI Master Kit | UF(M) 05 | Guided placement, standard cases | UF(II) Narrow and Regular | Yes | No | No |
| DIONAVI Narrow Kit | UF 14 | Guided narrow cases | Ø3.0–3.3 fixtures | Yes | No | No |
| DIONAVI Wide Kit | UF 11 | Guided wide cases | Ø5.5–6.4 fixtures | Yes | No | No |
| DIONAVI Flapless Crestal Sinus Kit | SMK 02 | Guided crestal sinus lift | Ø3.8–5.0 fixtures | Yes | Yes | No |
| Sinus Drill Solution | SKDS 01 | Free-hand crestal sinus lift (drills) | Stop drills Ø2.8–4.1 | No | Yes | No |
| Sinus Osteotome Solution (this kit) | SKOS 01 | Free-hand crestal sinus lift (osteotomes) | Wave ST osteotomes Ø2.7–4.0 | No | Yes | No |
| New Dr. SOS+ Kit | DRS 05 | Broken screw and failed fixture removal | Universal driver engages any remaining hole | No | No | Yes |
