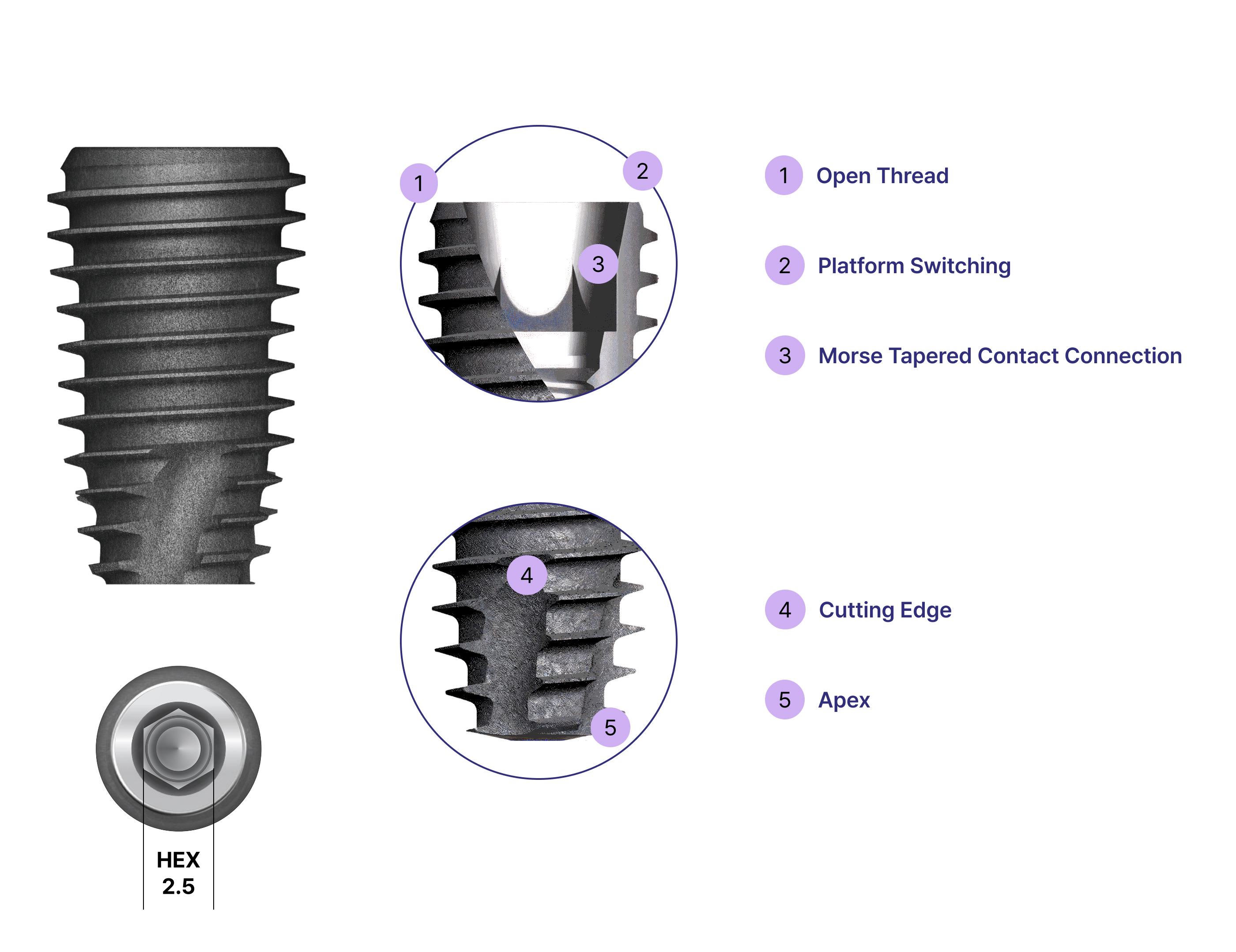

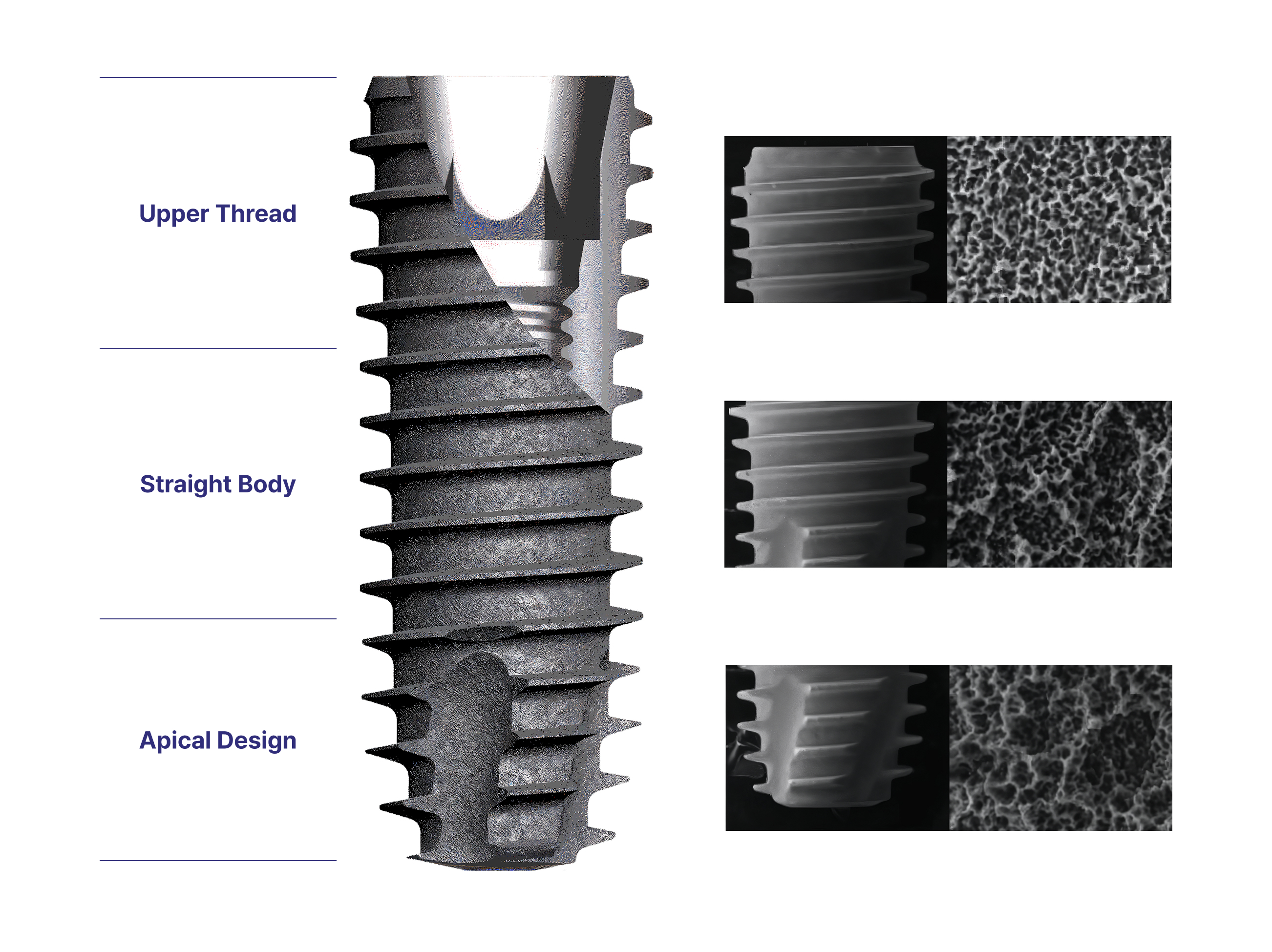

The DIO UF (II) Fixture is a cutting-edge implant, designed for perfection. With its open thread, it reduces the load while placing the fixture, adjusting the placement depth. By applying a tapered thread to the straight body, the stress applied to the upper part of the fixture is effectively dispersed. The thread depth decreases upwards, reducing friction on the cortical bone. The depth of the fixture is varied by changing the depth of the body part, and stable implantation is possible, like a straight type, in a fixture with a long depth. Even with weak bone quality, by applying a taper, the initial entry is easy, even when drilling is weak. Additionally, this product's platform switching configuration enables a stable abutment connection. It is also designed to decrease tissue damage when placing it in the maxillary.
More detailed information is below.

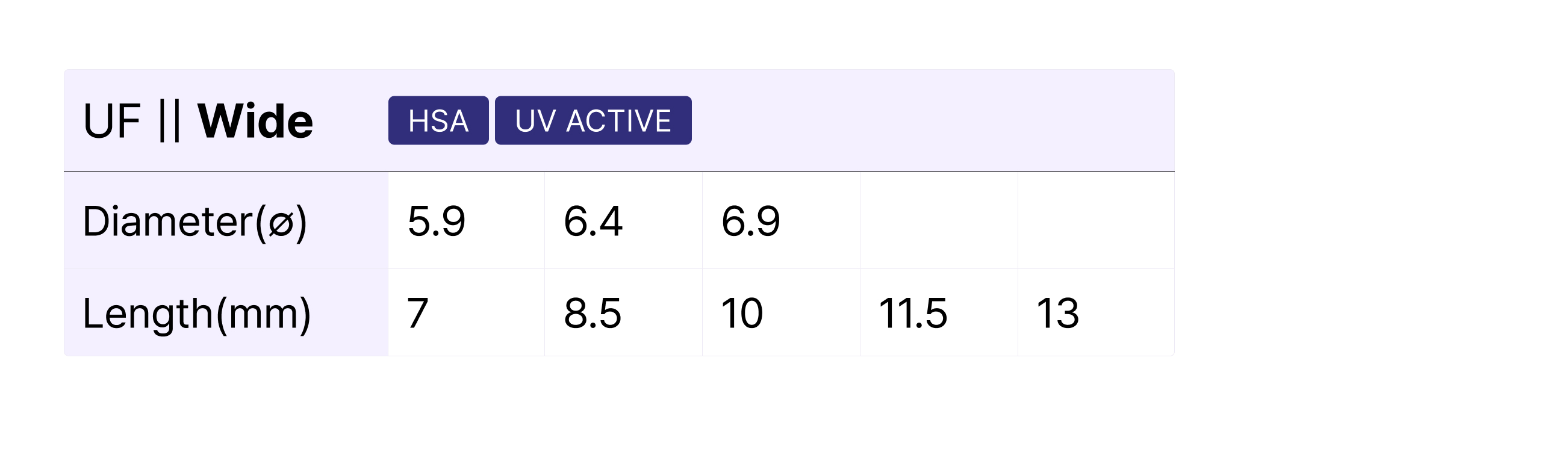

| UF || Wide | HSA UV ACTIVE |
| Diameter(∅) | 5.9, 6.4, 6.9 |
| Length(mm) | 7, 8.5, 10, 11.5, 13 |
