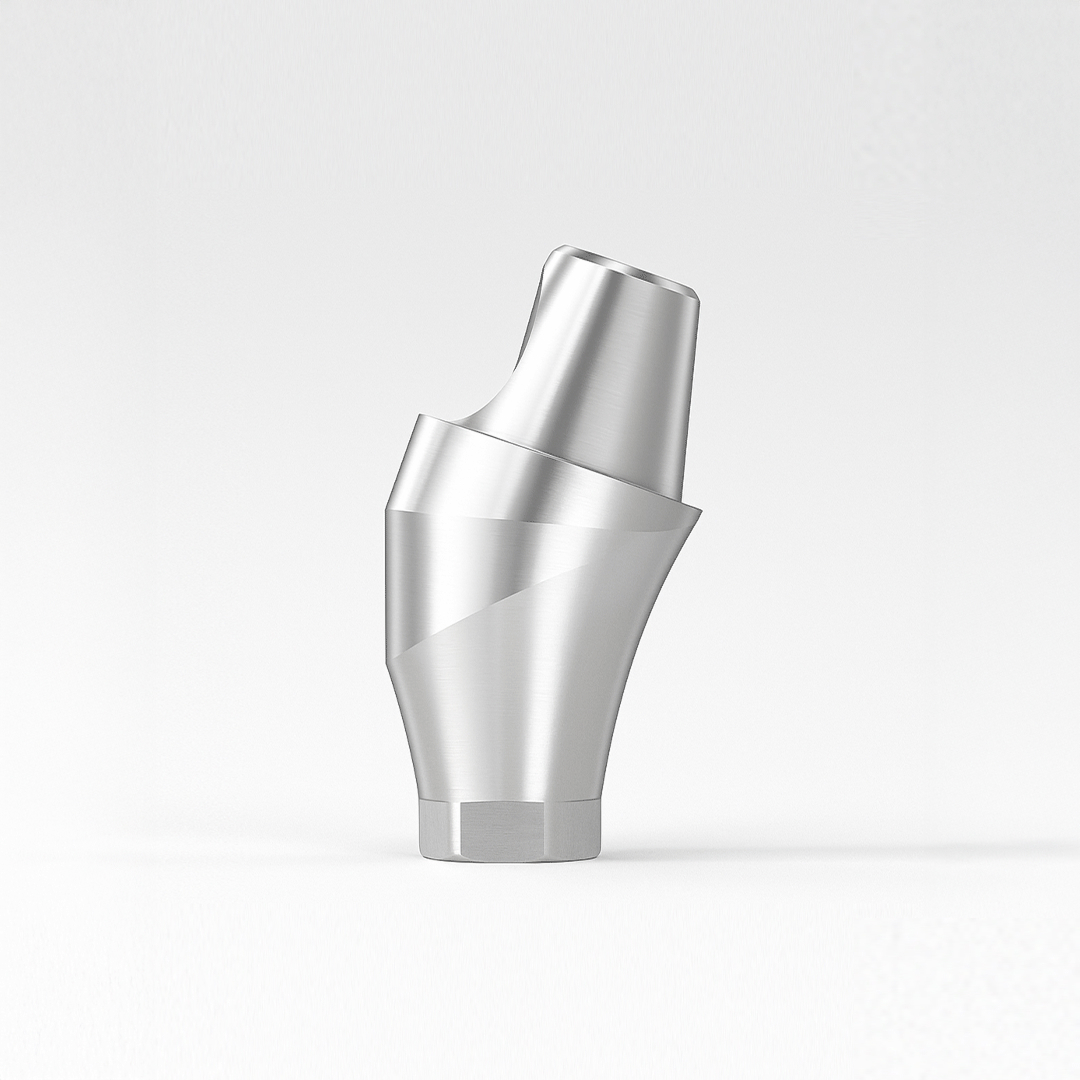

Multi Angled Abutment, (MAA), Regular.Wide(Hex)

DIO Product Catalog › Prosthetics & Overdenture › Multi-unit angled abutment

DIO official specifications

Bone Level UFII: Internal hex connection submerged implant system.

• Use multi-unit angled abutment driver
• Tightening torque: Narrow 20 Ncm / Regular 30–35 Ncm

Source: DIO Implant official product information. Confirm the platform and size against your fixture before ordering.

· Screw Retained type (Post Hex type)


· Multi-unit Angled Abutment and Fixture (UFII Regular/Wide) are fastened with the Multi-unit Angled Abutment Screw (MASC 2006).


· Multi-unit Angled Abutment is path compensate Maximum up to 60 °


· Tightening Torque: 30Ncm


· Packing unit : Multi-unit Angled Abutment + Screw + Holder


· Use Multi-unit Angled Abutment Driver: MHD 1215A (Ratchet) / MMD 1224 (Machine)
