DIO Product Catalog Prosthetics & Overdenture Healing abutment
DIO official specifications
Bone Level UFII: Internal hex connection submerged implant system.
- Use 1.2 hex driver or 0.5 slot driver
- Tightening torque: 5–8 Ncm
Source: DIO Implant official product information. Confirm the platform and size against your fixture before ordering.

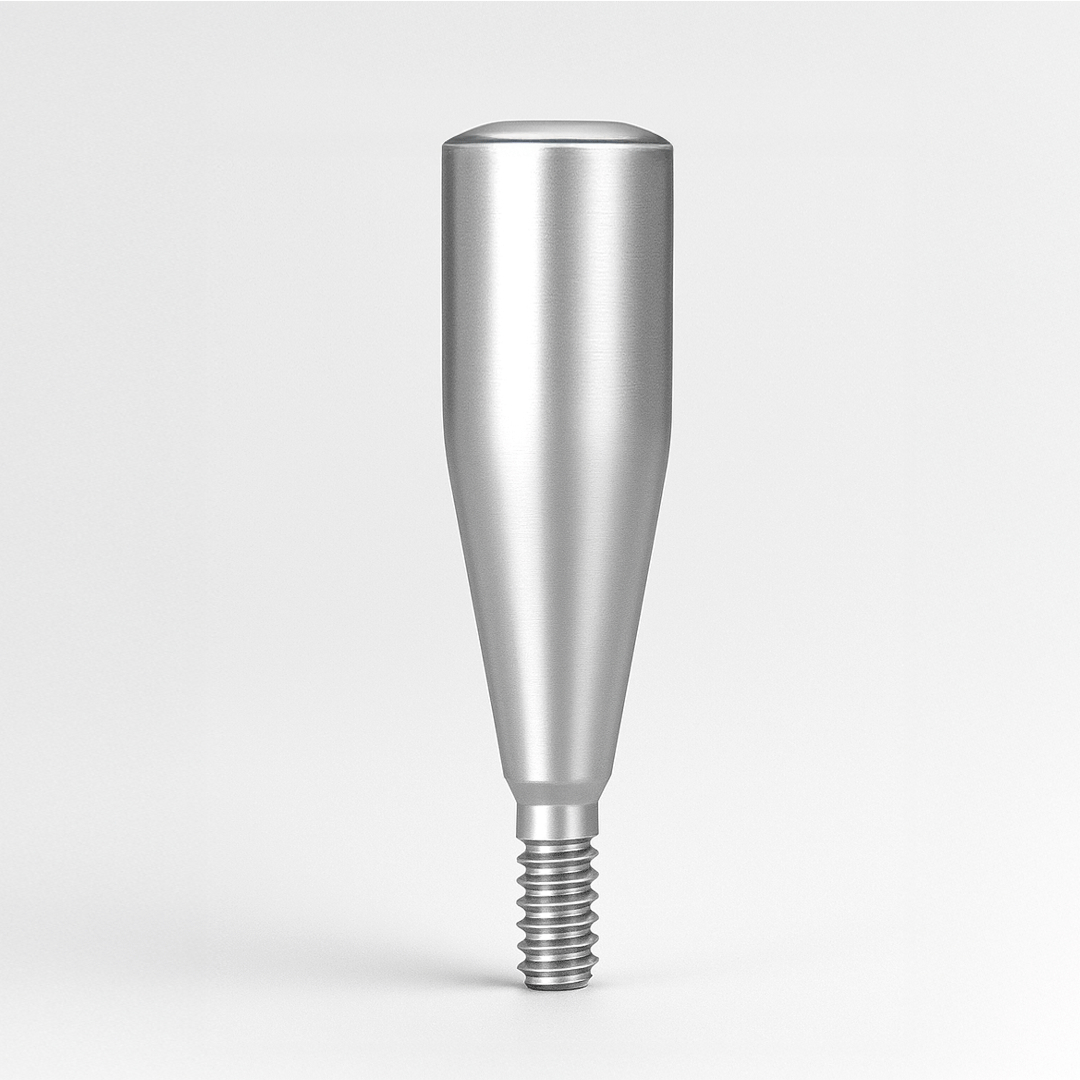

The healing abutments are designed to help gum tissue around the implant site heal faster.
Used for making designated shape of gingiva.
Caution
1.Connect the screw using 1.2 hex driver and hand-tighten (5~8Ncm)
2.Organized by diameter and height, the healing abutments can be selected according to the needs and requirements of a particular clinical case.
- Use larger healing abutment than an abutment in order to maintain balance between the gum and final prosthesis without gum interference while abutment is being settled.
※ When connecting the cover screw and healing abutment, the screw can be separated easily by applying antibiotics functioning as lubricant. (Antibiotics: Minocline, Periocline, etc.)
Uses 1.2 Hex Driver
Uses 0.5 Slot Driver
Tightening Torque: 5-8Ncm
| Healing Abutment, (UNSHA), Narrow | |
| Diameter(∅) | 4.1, 4.2, 4.6, 4.7 |
| Height(mm) | 2, 4, 5, 7, 8.5, 10 |
