DIO Product Catalog Prosthetics & Overdenture Angled abutment
DIO official specifications
Bone Level UFII: Internal hex connection submerged implant system.
- CRP retained restorations
- Used to correct the fixture path, mainly in the anterior region
- Use 1.2 hex driver
- Tightening torque: Narrow 20 Ncm / Regular 30–35 Ncm
Source: DIO Implant official product information. Confirm the platform and size against your fixture before ordering.
Used to modify the fixture's path, mainly used for anterior teeth
For Cement retained type of abutment
Depending on the angle slope, it is categorized into 15' and 25' Angled Abutment

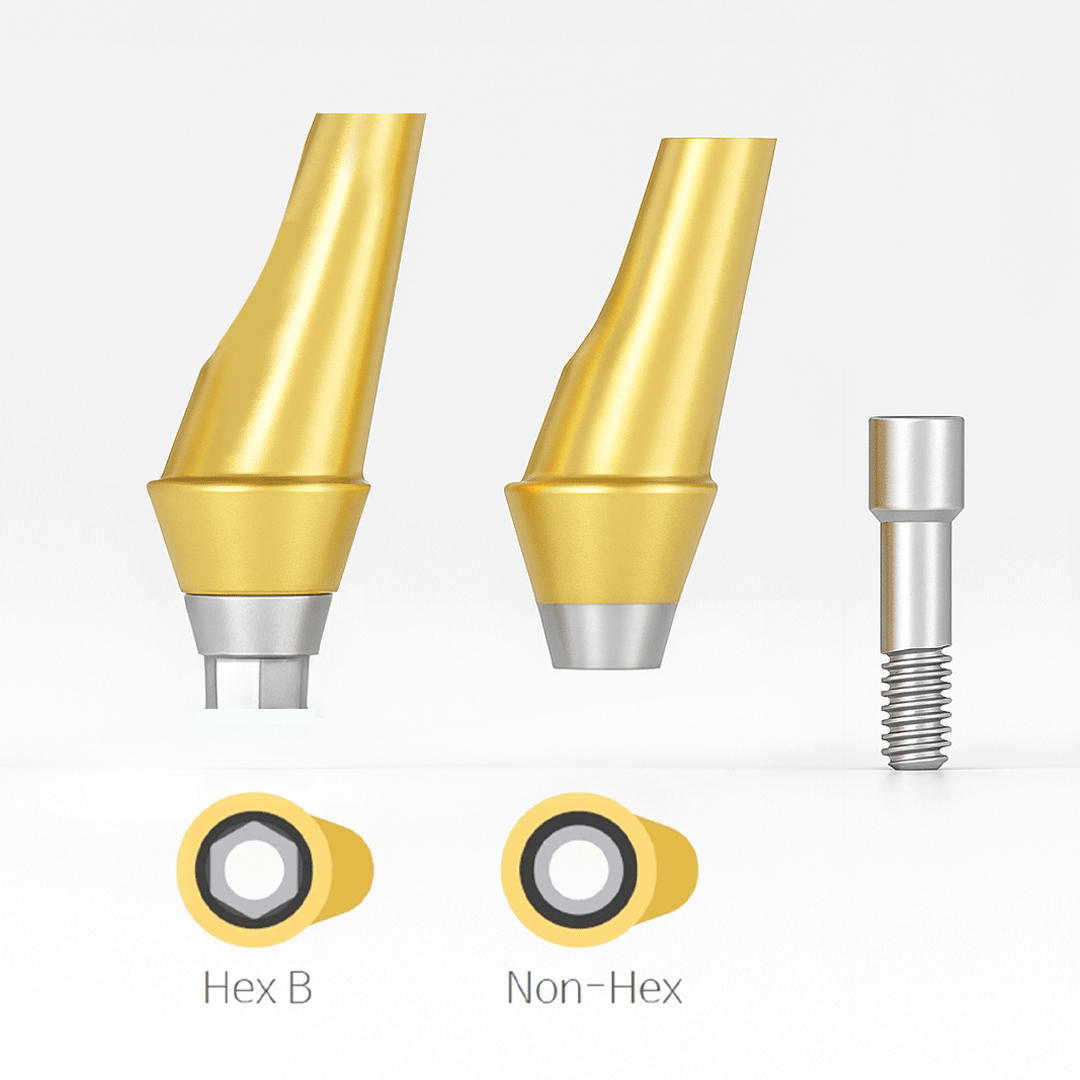

Availability of A type and B type of hex part overcomes the limitation of the direction of the abutment
Gold colored gingival area for aesthetic purposes
Uses 1.2 Hex Driver
Packing Unit : Abutment + Abutment Screw ( N UNSAS 1407H, R W SSC 2008H
Tightening Torque: Narrow 20Ncm, Regular/Wide 30-35Ncm
| Angled Abutment, (UNSAA), Narrow | |
| Diameter(∅) | 4.0 |
| Cuff(mm) | 2, 4 |
| Angle | 15° |
