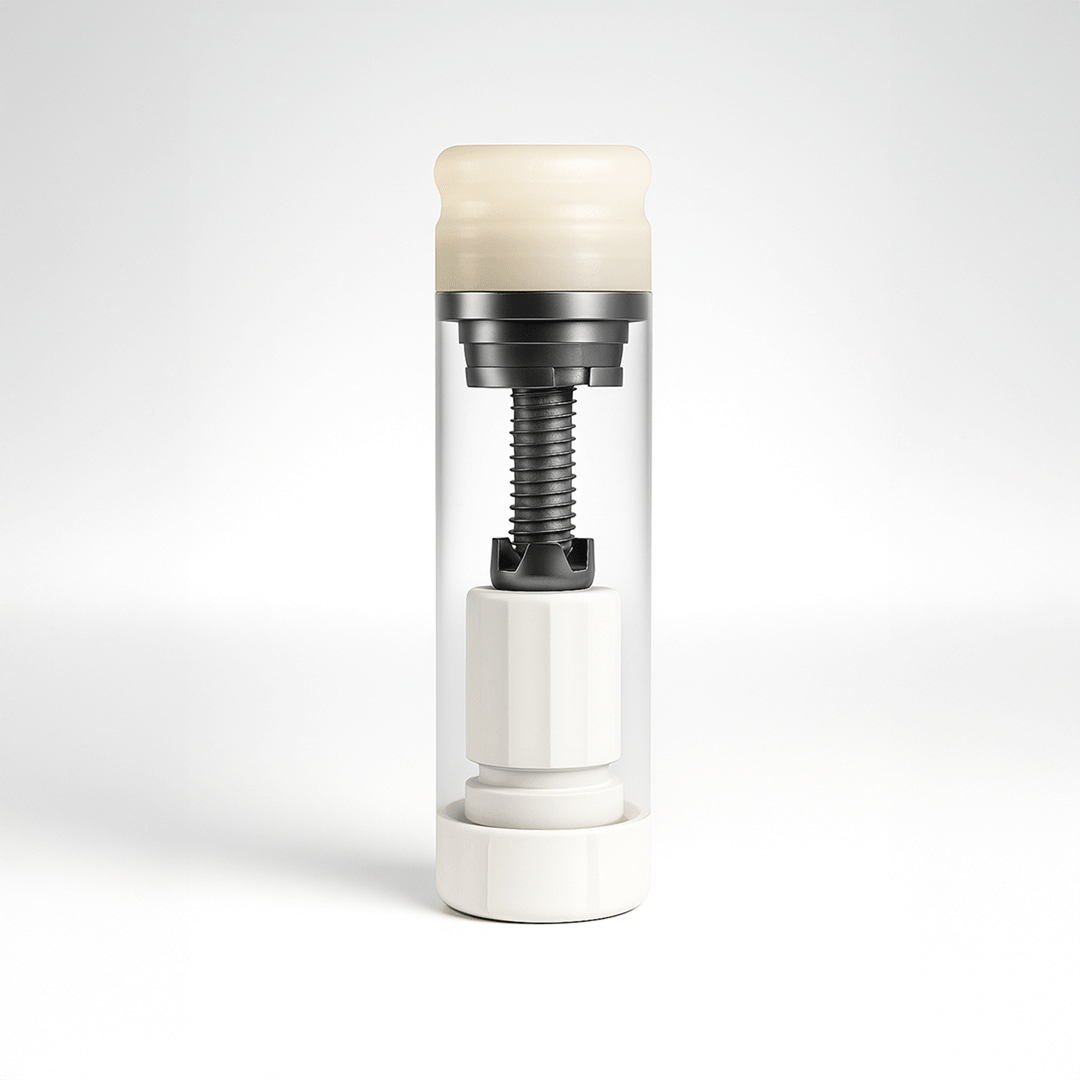

The DIO UV Active Fixture, Narrow against a white background.

DIO UV Active Fixture, Narrow

DIO Implant

MSRP: $350.00
$275.00
(You save $75.00 )
(No reviews yet) Write a Review
Adding to cart… The item has been added

Why Dio Implant?

Earlier Bone Formation

This innovative implant uses UV photofunctionalization technology to radically improve the surface. The treatment converts the implant from hydrophobic to superhydrophilic and actively removes contaminating organic matter, which maximizes the adherence of blood and bone-forming cells. This accelerated healing process, called earlier bone formation, dramatically speeds up osseointegration and enables early prosthesis loading. Clinical data proves this allows for your new crown to be placed in as little as 2–4 weeks, ensuring superior initial stability compared to traditional implants.

UV Untreated vs UV Treated

Biological Aging

Hydrocarbon + Hydrophobic + Electro-Negative

1. The freshly manufactured implant initially has hydrophilic property on its surface.
2. When exposed to air, the SLA-treated surface forms a layer of titanium dioxide (TiO₂), a photocatalyst medium.
3. Biological aging occurs as soon as implants are exposed to air.
3. Attachment and accumulation of hydrocarbons are on the surface.
4. Conversion of surface to hydrophobic and electronegative elements.
5. Decreased osseointegration efficiency.

 UV Implant

The UV Active Fixture is an innovative dental implant that uses UV treatment to remove foreign substances ahead of its placement. In turn, healing time can be substantially reduced, and it offers long-term stability for patients. The product has an all-new 360° cylindrical form factor and high power increases the absorption rate of UV rays by thoroughly irradiating the titanium surface, achieving superior hydrophilicity in such a short amount of time and still dramatically boosting osseointegration.

UV Photofunctionalization

Carbon Free + Super-Hydrophilic + Direct Electrostatic Interaction

1. UV photocatalytic activity proceeds when UVC is irradiated on the TiO₂ layer of the implant surface.
2. OH-radicals remove hydrocarbons from the implant surface and increase BIC (Bone-to-Implant Contact).
3. Conversion of the surface from hydrophobic to superhydrophilic induces improved blood wettability.
4. Surface modification to electro-positive leads to the direct electrostatic interaction of UV-treated surface with cells.
5. Induces fast bone formation and attains early osseointegration.

Features:

  • UV Active implants are designed to work with the chairside UV activator.
  • UV active implants remove all foreign substances through UV (Ultraviolet) irradiation before placement.
  • UV Implants significantly reduce healing time.
  • UV Active / Packing Unit: Fixture (EXCLUDING COVER SCREW)

Experimental Results

Change Hydrophilicity and Increase Wettability

  • Superhydrophilicity from OH radicals maximizes blood wettability and improves adhesion of proteins and osteoblasts, speeding up initial bone formation.
  • Faster loading time and shorter unstable period after placement.
  • Hydrophobic : UV Untreated(water bubbles do not absorb but form on surface).
  • Superhydrophilic : UV Treated(water bubbles absorb immediately).

Hydrocarbons Matter Removed From Implant Surface

UV photofunctionalization removes about half of contaminated hydrocarbons on implant surface before placement, increasing BIC ratio.

Remove Hydrocarbons and Increase BIC

UV treated implants remove organic matter, inducing stable bone formation due to higher BIC (Bone to Implant Contact).
Implant failure rate is lower due to high bone intensity during formation.

The UV Active Fixture is an innovative dental implant that uses UV treatment to remove foreign substances ahead of its placement. In turn, healing time can be substantially reduced, and it offers long-term stability for patients. The product has an all-new 360° cylindrical form factor and high power increases the absorption rate of UV rays by thoroughly irradiating the titanium surface, achieving superior hydrophilicity in such a short amount of time and still dramatically boosting osseointegration.

Features:

  • UV Active implants are designed to work with the chairside UV activator.
  • UV active implants remove all foreign substances through UV (Ultraviolet) irradiation before placement.
  • UV Implants significantly reduce healing time.
  • UV Active / Packing Unit: Fixture (EXCLUDING COVER SCREW)

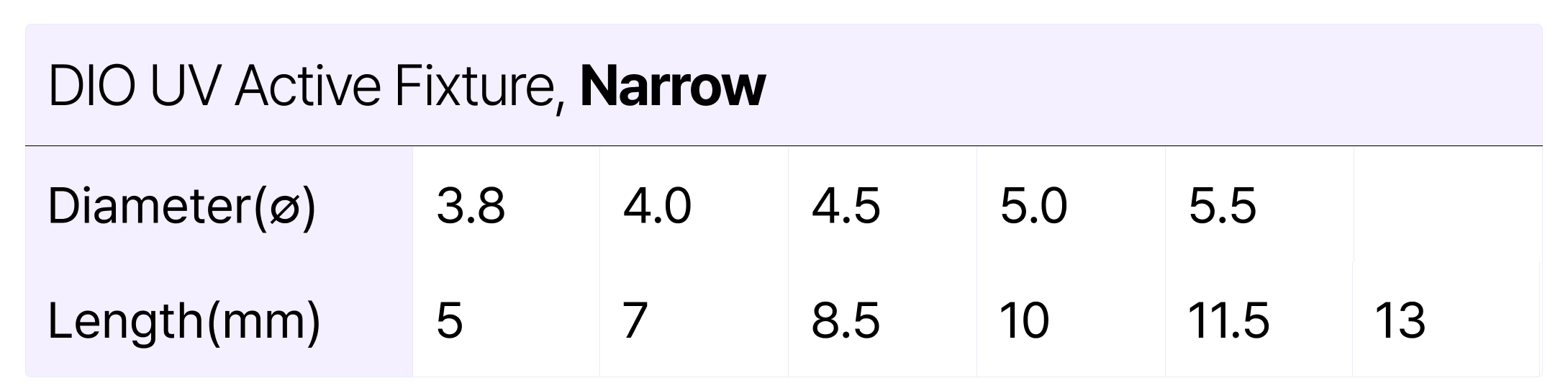

 DIO UV Active Fixture, Narrow
 Diameter(∅)  6.0, 6.5
 Length(mm)  5, 7, 8.5, 10, 11.5, 13
